Dart Gun War Equipment

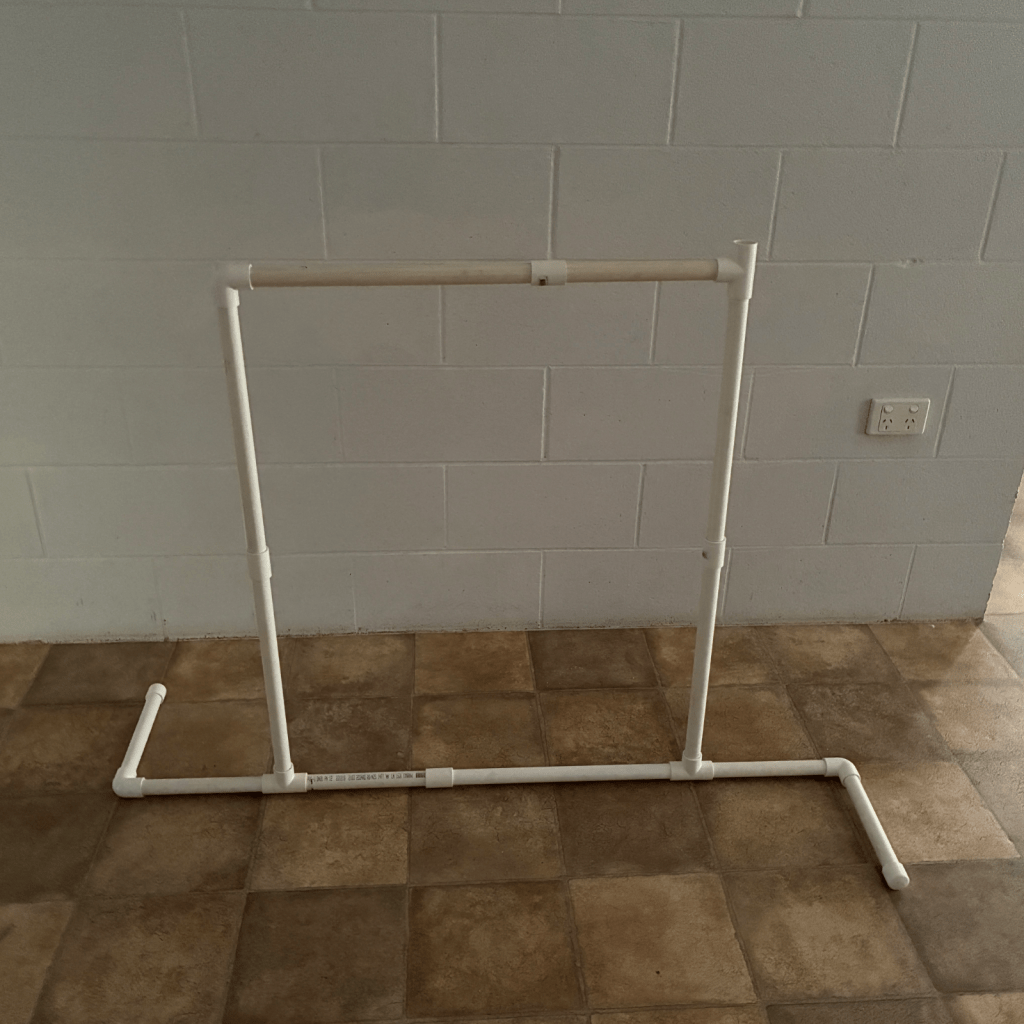

You will need to assemble two rectangular frames with feet out of PVC pipe and PVC fittings. Refer to images below.
The height of the frame I made is approx 950mm and the width between 700-800mm, not including the width of the feet. Note: There are different ways to design feet for your frames, the pictures below illustrates a design of one foot forward one one side and one foot back on the other side. It is better to have one foot forward and one foot back on both sides, which is the current design I use.

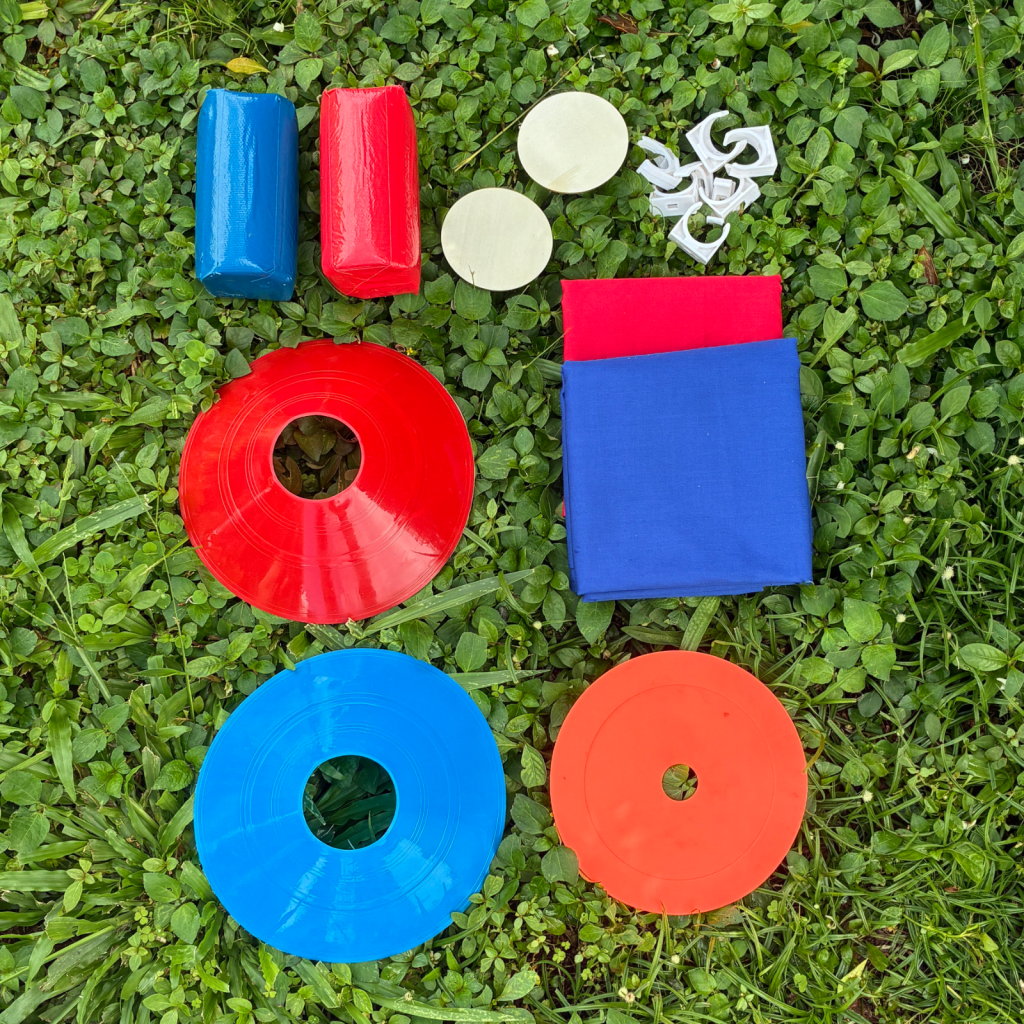

The top of your frame must have a T piece fitting on one of the corners for a Payload Stand plug to fit in. The payload stand and plug was made using a 7cm in diameter disc and piece of dowel that fit inside the pvc pipe. My dowel was a bit loose in the pvc pipe so I wrapped both pieces of dowel in duct tape to achieve a snug fit for both of them.

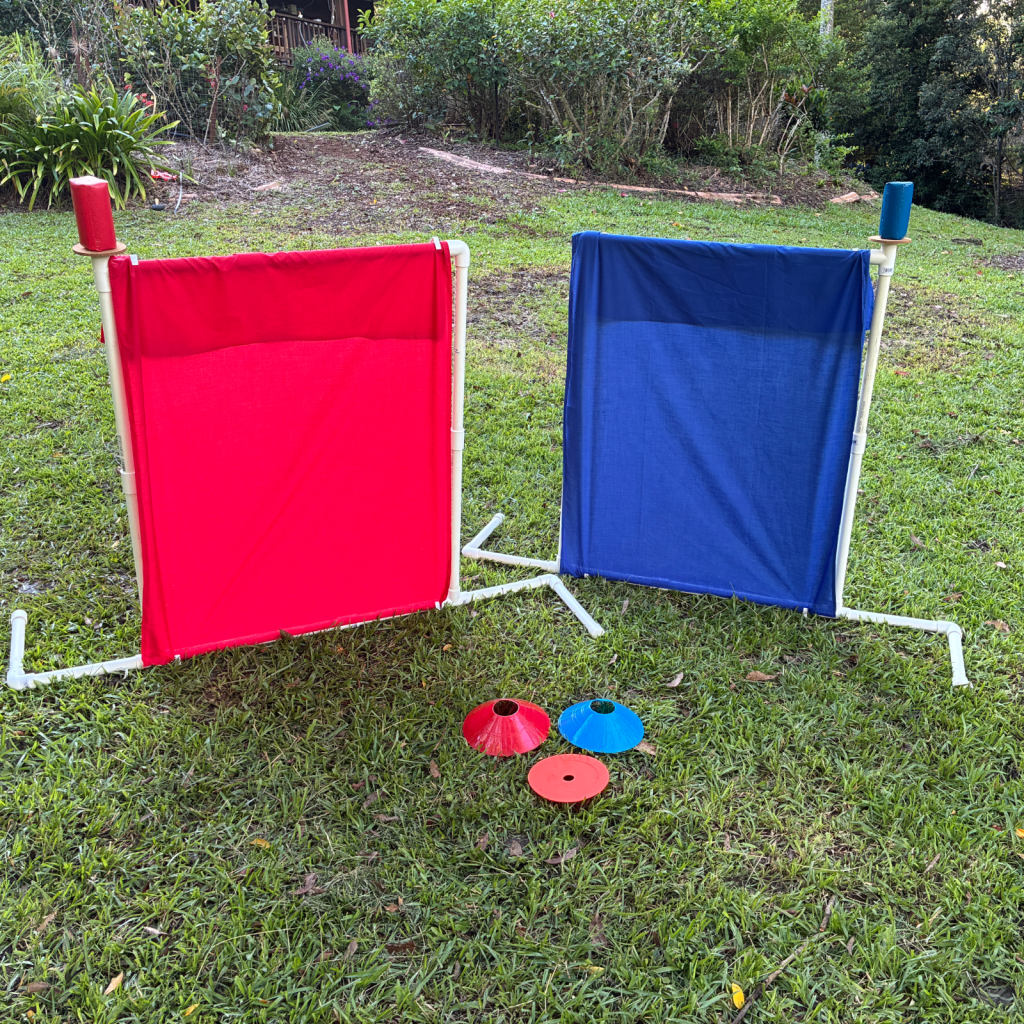

Once you’ve assembled your frames, attach your fabric by securing it anyway you see fit (I used pipe clamps) and payload stands.
Then, click here to setup your field and play.
